the first picture
The mark left to 43-561 is the trade mark of Osaka Gas.
43-561 is the model number of a gas fan heater.
the third picture
the one right to the red light
燃焼
nenshou
burning
the one right to the power button
入/切
hairu/kiru
on/off
In the first picture, when the upper green light lights up(as in your picture), the number shows the current room temperature (19 degrees C).
When you push ▼ or ▲ button in the second picture, the lower green light in the first picture lights up and the display changes to show the preset room temperature. (10 seconds later, the display automatically returns to the current room temperature.)

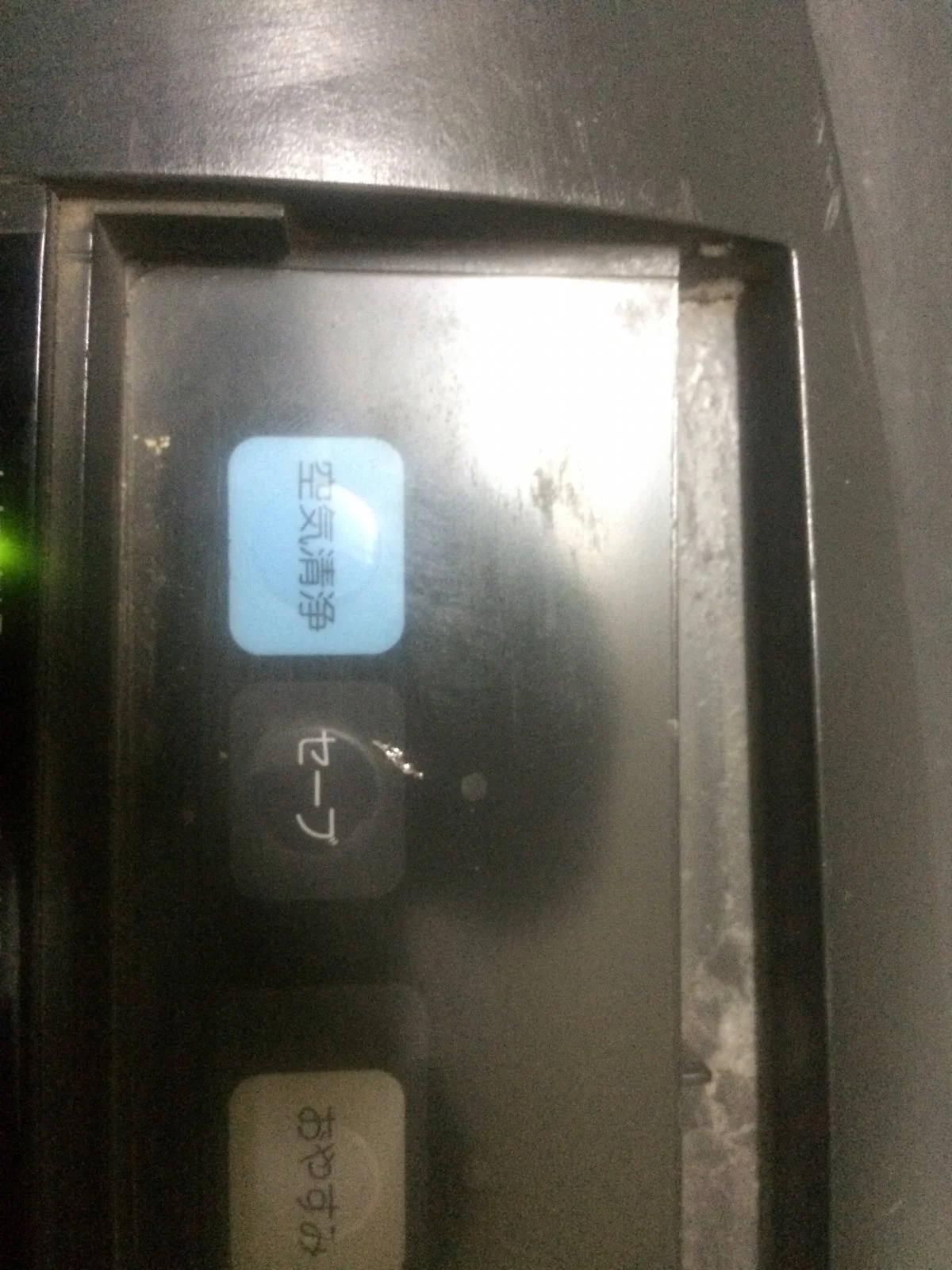

When you push "Oyasumi/Good Night" button in the third picture, the green light over the button lights up (as in your picture), and the gas fan heater automatically turns off one hour later.
The mark left to 43-561 is the trade mark of Osaka Gas.
43-561 is the model number of a gas fan heater.
the third picture
the one right to the red light
燃焼
nenshou
burning
the one right to the power button
入/切
hairu/kiru
on/off
In the first picture, when the upper green light lights up(as in your picture), the number shows the current room temperature (19 degrees C).
When you push ▼ or ▲ button in the second picture, the lower green light in the first picture lights up and the display changes to show the preset room temperature. (10 seconds later, the display automatically returns to the current room temperature.)
When you push "Oyasumi/Good Night" button in the third picture, the green light over the button lights up (as in your picture), and the gas fan heater automatically turns off one hour later.
