How do computers recognize letters?

Muz1234

Sempai
Joined
Aug 13, 2014
Messages
245
Reaction score
5
When the computer was invented, how did the computer recognize letters from the input of keyboard and display it into the monitor?


cloa513

後輩
Joined
May 28, 2016
Messages
66
Reaction score
4
When the computer was invented, it didnt have a keyboard and display was extremely limited. For a computer, letters are just codes that the computer uses a basic database to convert.

Joined
May 5, 2013
Messages
785
Reaction score
297
The very first keyboards were not attached to the computers, but punched holes in paper cards which were later fed to the computer. A wire sensor was an open circuit where there was no hole, and a closed circuit where there was a hole, as the card passed through the computer's card reader. The keyboard driven keypunch machine actually predates the computer.

Demonstration of an advanced late-model keypunch machine:

Summary from the Source of All Knowledge*:

* "All Knowledge" may include trace amounts of misinformation.


Muz1234

Sempai
Joined
Aug 13, 2014
Messages
245
Reaction score
5
Whats the keypunch for? Is it readable for a normal text?

Joined
May 5, 2013
Messages
785
Reaction score
297
Whats the keypunch for? Is it readable for a normal text?
The keypunch machine is a typewriter for punchcards, essentially.

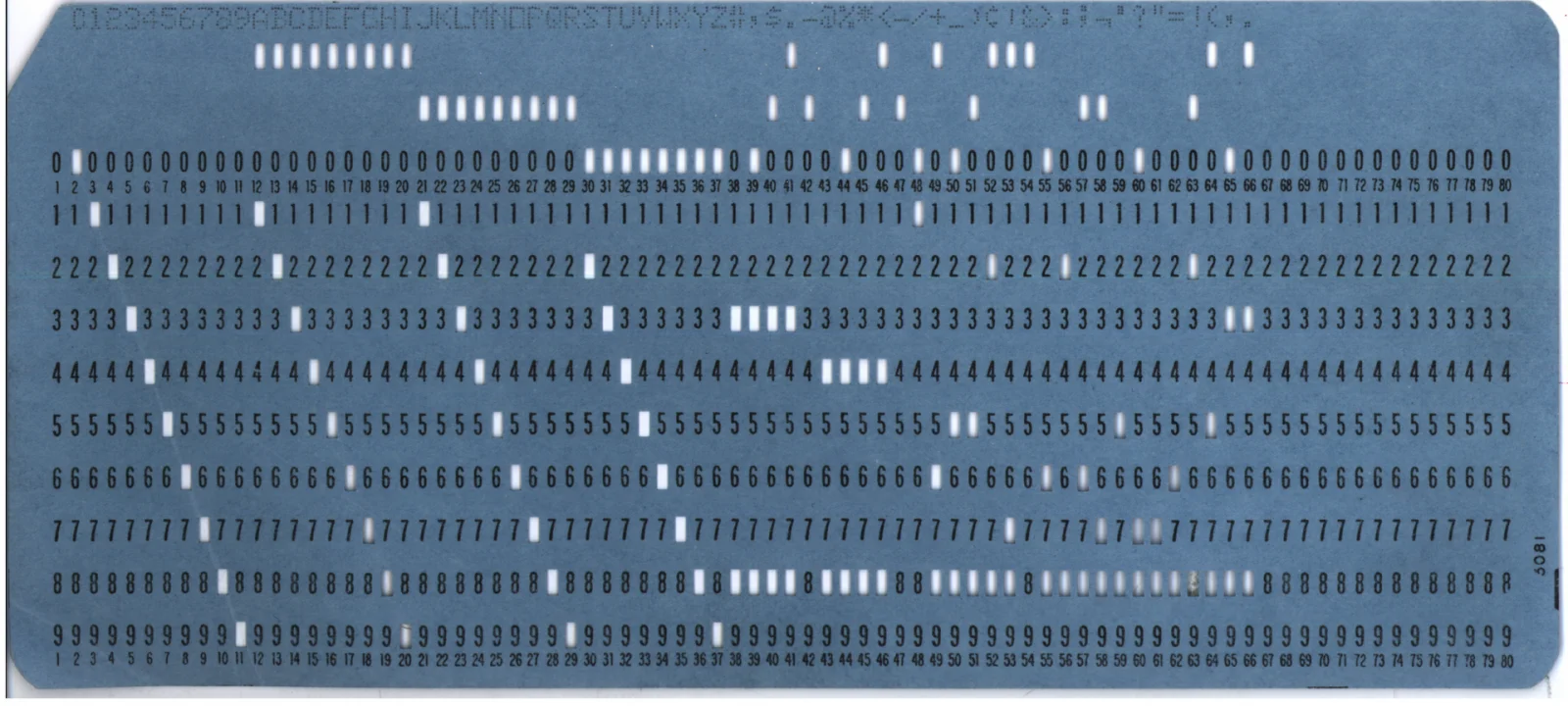

Over time, there have been punchcards where the holes represented all different kinds of data, but the most common punchcards in the computer era
could represent letters, numbers, a little punctuation and a few mathematical symbols. They were used to write Fortran and Cobol programs and data
for those programs, among other things.

The symbol printed at the top of each column shows what the column encodes here.
